How Semiconductor is made

01
START

Silicon Substrate

RESTART

Monocrystalline silicon ingots are sliced into wafers for ease of processing in the subsequent chip manufacturing steps.

02
START

Oxidation and Nitride Film Deposition

RESTART

A wafer is set in a thermal processing system, and then exposed to oxygen at high temperatures to create a layer of silicon oxide on the surface. Next, silane and ammonia gases are introduced in the chamber, forming a silicon nitride top layer by chemical vapor deposition (CVD).

Semiconductor equipment

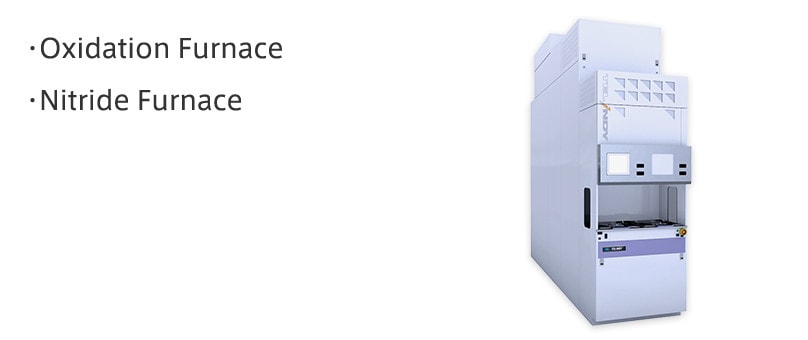

Oxidation Furnace, Nitriding Furnace Nidride LPCVD
